Reduced Pulsation L/S® Multichannel Cartridge Pump Heads 07519-10
Ideal for accurate chemical feed/metering and high-purity, high-pressure applications, or both

Description
· Get low-pulsation flow from up to 12 channels
· Improved retainer design holds tubing securely in place
· These pump heads are available with six or eight rollers. The greater the number of rollers, the lower the pulsation. They feature stainless steel rotors, Rulon® rollers, and PSF ends. Occlusion is offset, tangential, and adjustable. For large cartridges, set tubing retainers to your tube size and you are ready to pump. On small cartridges, optimum retention is preset—simply load tubing and start pumping.


A. 2-Channel, 6-Roller Pump Head 07519-10 (not shown) · Flow rates: 0.0008 to 350 mL/min
· Number of cartridges: 1 or 2 large

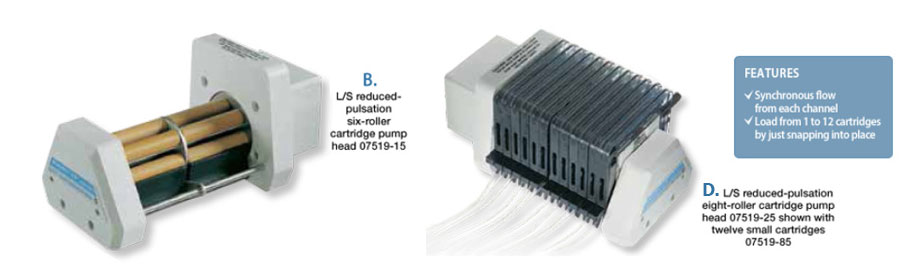

​ B. 6-Channel, 6-Roller Pump Head 07519-15 · Flow rates: 0.00017 to 170 mL/min
· Number of cartridges: 1 to 6 large​
C. 4-Channel, 8-Roller Pump Head 07519-20 (not shown) · Flow rates: 0.00006 to 85 mL/min
· Number of cartridges: 1 to 4 small​
D. 12-Channel, 8-Roller Pump Head 07519-25 · Flow rates: 0.00001 to 41 mL/min
· Number of cartridges: 1 to 12 small

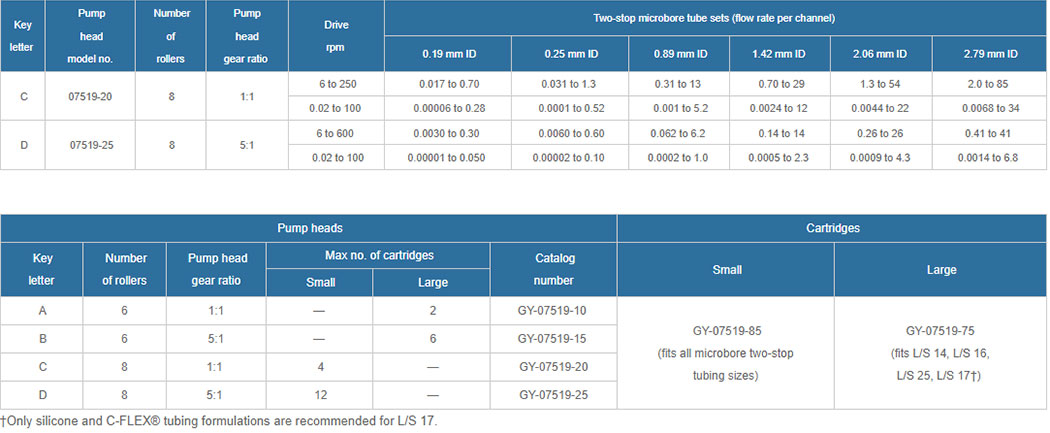

Flow Rates per Channel in mL/min with L/S Precision Pump Tubing

​Flow Rates per Channel in mL/min with Two-Stop Microbore Pump Tube Sets
